Quick Details

  • Condition: New
  • Type: Paper Cutting Machine
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BindTec
  • Model Number: BD-520Z
  • Voltage: 110V/220V
  • Power(W): 1.8KW
  • Dimension(L*W*H): 1290X990X1470mm
  • Weight: 430KGS
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Hydraulic Guillotine Paper Cutter
  • Model: BD-520Z
  • Max. Cutting Width: 520mm
  • Max. Cutting Thickness: 80mm
  • Precision: ±0.2mm
  • Press Paper Mode: Hydraulic
  • Push Paper Mode: Hydraulic
  • Safety: IR
  • GW: 430kgs
  • Packing Size: 1290*990*1470mm

Packaging & Delivery

Packaging Details Wooden case for BD-520Z Hydraulic Guillotine Paper Cutter
Delivery Time 7 days after the payment

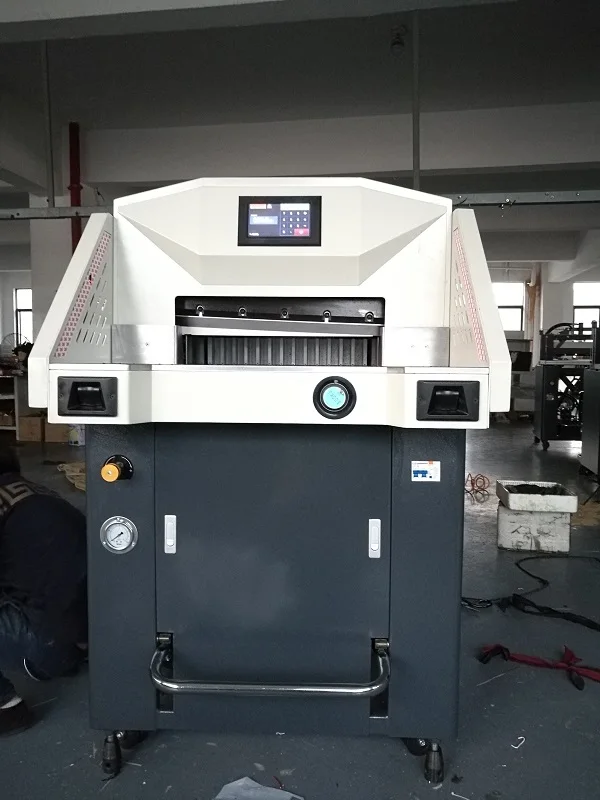

Automatic Paper Cutting Machine Hydraulic Guillotine Paper Cutter

BD-520Z





1.Features

1)Top suspension ball lead screw patent
No-slotted pushing table design,top suspension ball screw make pushing paper more stable,It matches up the servo motor control design,cutting precision is better.

2)Mechanical pedal
Pressure paper proofread position,easy and convenient

3)PLC control dystem design
The usage of plc control system is more stable and reliable.

4)Cast aluminum table design
High durability and hard to distortion

5)Inclined blade cutting patented technology
Any thick paper can be cut and easy

6)Leak-Proof design
Solving the problem of leaking in the cylinder

7)Double Hydraulic with strong power system design
High quality motor with strong power,hydraulic components for ensuring quality,with external knob for adjustment pressure of paper clamp

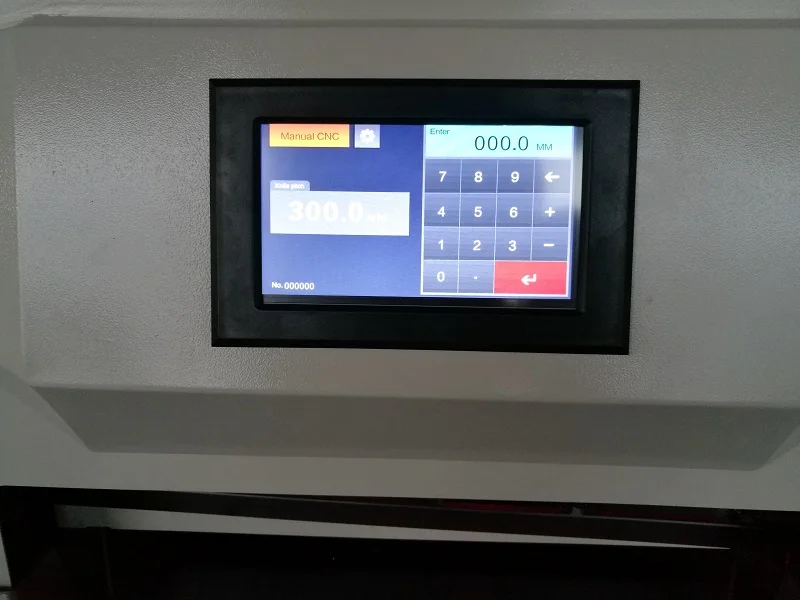

8)Intelligent control,7"LCD touch screen
The cutting depth and precision can be adjusted through the program.You can set 100 groups of program and 96 cuttings per group.This personal design makes the operation more flexible and convenient.

9)Patent appearance design
New modern and fashion design which is suitable for Digital Express Printing office

2.Parameter



ModelBD-520Z-A
Max. Cutting Width520mm
Max. Cutting Thickness80mm
Press Paper ModeHydraulic
Push Paper ModeHydraulic
SafetyIR
Power220V±10% 50HZ 1.8kw
DisplayTouch Screen
Packing Size(L*W*H)1290*990*1470mm
Weight430KGS



2. Details

Cutting Effect



Related Machines



Company Profile



Packaging & Shipping



FAQ

1.What’s the product range?

Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, creasing machine and some small office equipment.

2.Are you a manufacture?

Yes, we are factory in Hangzhou which is near to Shanghai(About one hour by train).

3.What is the minimum quantity for order?

5 pcs or 2000 USD for order.

4.Do you have stock product to sell?

Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

By Sea

By Air

By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

Payment term: T/T before shipment.

We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

Within 15 days after get the payment.
