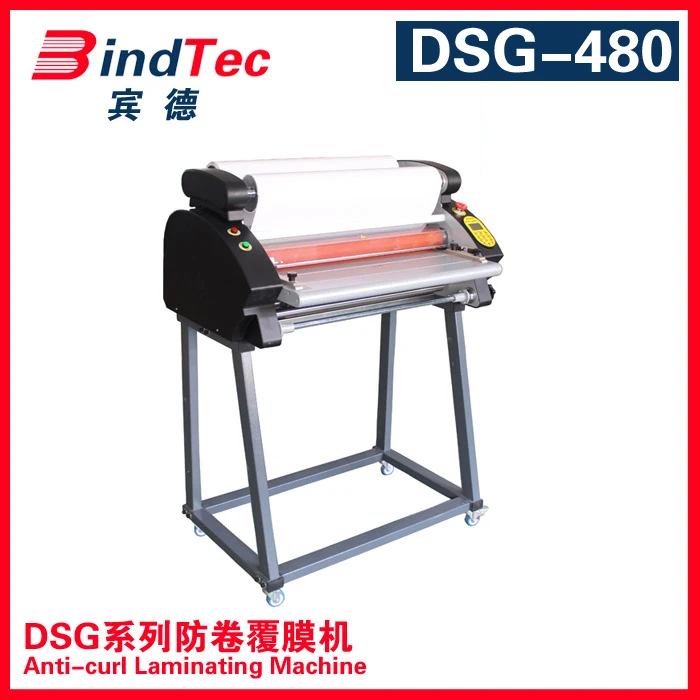

BD-FM480DSG High Speed Laminating Machine

FOB Reference Price:Get Latest Price
US $500-1,000 / Sets | 1 Set/Sets High Speed Laminating Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Cold & Hot Laminator
Paper Size:
A3, A4, A5, A6
Brand Name:
BindTec
Model Number:
BD-FM480DSG
Place of Origin:
Zhejiang, China (Mainland)
Product:
High Speed Laminating Machine
Model:
BD-FM480DSG
Max. Laminating Width:
340/480/630mm
Max. Laminating Thickness:
0-5mm
Laminating Speed:
60-300cm/min
Laminating Temperature:
Room temp -160℃
Heating Roller Dia:
55mm Hot&Cold laminator
Voltage:
AC220V±10% 50HZ
Power:
1.05KW
Weight:
50/60/80kgs
Supply Ability
Supply Ability:
300 Set/Sets per Month One year warranty
Packaging & Delivery
Packaging Details
Export wooden case of BD-FM480DSG High Speed Laminating Machine .
Port
ningbo/shanghai
Lead Time :
Within 3 days after payment



 High Speed Laminating Machine

BD-FM480DSG







1. Feature of BD-FM480DSG High Speed Laminating Machine

1)Precision Non-contact infrared temperature measurement system.

2)Independent upper and bottom lamination roller temperature control system makes the arbitrary control temperature. These solve the inaccurate temperature problem caused by contact infrared temperature system.

3)The temperature can be set from room temp to 160℃.

4)LCD display, touch key make easier operation.

5)Equipped with one-sided anti-curl function, electrical control feature makes the operation more convenient. The strong cooling fan, solve the problem of one-sided film curl.

6) Gearbox gear motor increases operating torque of motor and improves motivation of motor and working life.

7)Equipped with step pressure regulator modeusers can choose different pressure according to film of different thicknesses.



2. Parameter of BD-FM480DSG High Speed Laminating Machine



 Model

BD-FM480

Max laminating width

480mm



Max laminating thickness

0-5mm



Laminating speed

60-300cm/min



Max material thickness

 Up to 250 mic



Laminating temperature

Room temp-160℃



Heating roller dia

55mm



Discharging roller dia

45mm



Voltage/Power

220V/1.05KW



Weight

60kgs







Related Machines





3.About our Factory



4.Delivery of BD-FM480DSG High Speed Laminating Machine



1)Delivery way: By ship,by air,or by courier for small quantity.
2)Delivery time: It depends on the order quantity.
3)Loading port: Ningbo/Shanghai.



5.Payment Terms of BD-FM480DSG High Speed Laminating Machine

T/T, L/C, Western Union, Paypal.



6.Advantage of BD-FM480DSG High Speed Laminating Machine

1)Low MOQ: It can meet your low qty demand very well.
2)Good Service: We treat clients business as our own business.
3)Good Quality:We have strict QC quality control system .Good reputation in the market.
4)Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).



7.Related Product
