Quick Details

  • Type: Cold & Hot Laminator
  • Paper Size: A3, A4, A5, A6
  • Brand Name: BindTec
  • Model Number: BD-FM380/480/680DSG
  • Place of Origin: Zhejiang, China (Mainland)
  • Product: Hot sale semi-automatic paper lamination machine
  • Model: BD-FM380/480/680DSG
  • Max. Laminating Width: 340/480/630mm
  • Max. Laminating Thickness: 0-5mm
  • Laminating Speed: 60-300cm/min
  • Laminating Temperature: Room temp -160℃
  • Heating Roller Dia: 55mm
  • Voltage: AC220V±10% 50HZ
  • Power: 1.05KW
  • Weight: 50/60/80kgs

Packaging & Delivery

Packaging Details wooden case .
Delivery Time Shipped in 3 days after payment



BD-FM380/480/680DSG

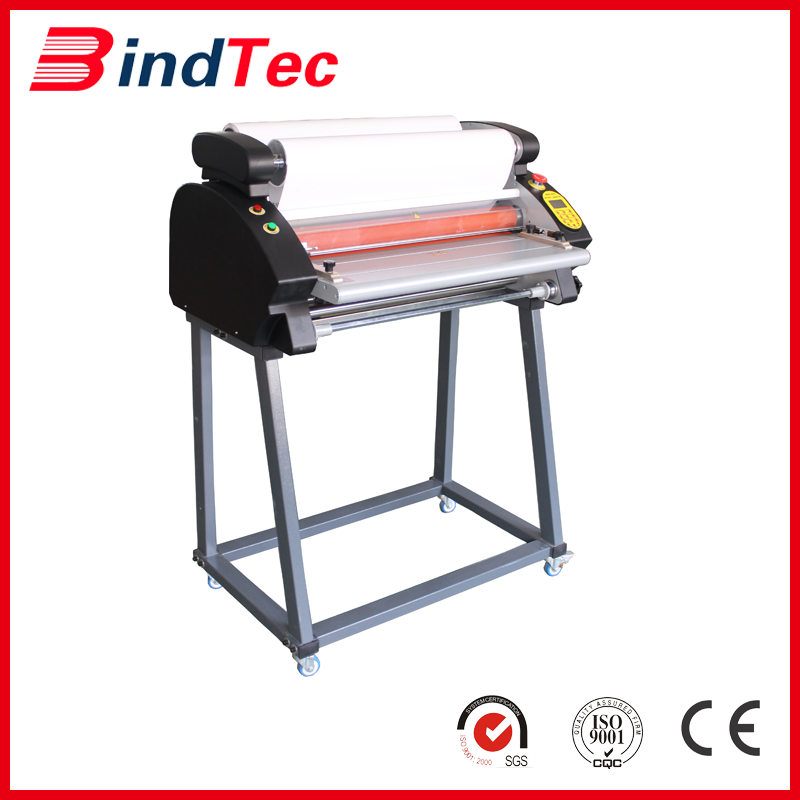

Hot sale semi-automatic paper lamination machine









1. Feature of Lamination Machine BD-FM380/480/680DSG

1)Precision Non-contact infrared temperature measurement system.

2)Independent upper and bottom lamination roller temperature control system makes the arbitrary control temperature. These solve the inaccurate temperature problem caused by contact infrared temperature system.

3)The temperature can be set from room temp to 160℃.

4)LCD display, touch key make easier operation.

5)Equipped with one-sided anti-curl function, electrical control feature makes the operation more convenient. The strong cooling fan, solve the problem of one-sided film curl.

6) Gearbox gear motor increases operating torque of motor and improves motivation of motor and working life.

7)Equipped with step pressure regulator modeusers can choose different pressure according to film of different thicknesses.



2. Parameter of Lamination Machine BD-FM380/480/680DSG



 Model

BD-FM380/480/680

Max laminating width

340/480/630mm



Max laminating thickness

0-5mm



Laminating speed

60-300cm/min



Max material thickness

 Up to 250 mic



Laminating temperature

Room temp-160℃



Heating roller dia

55mm



Discharging roller dia

45mm



Voltage/Power

220V/1.05KW



Weight

50/60/80kgs







3.About our Factory





4.Delivery of Lamination Machine BD-FM380/480/680DSG



1)Delivery way: By ship,by air,or by courier for small quantity.
2)Delivery time: It depends on the order quantity.
3)Loading port: Ningbo/Shanghai.



5.Payment Terms of Lamination Machine BD-FM380/480/680DSG

T/T, L/C, Western Union, Paypal.



6.Advantage of Lamination Machine BD-FM380/480/680DSG

1)Low MOQ: It can meet your low qty demand very well.
2)Good Service: We treat clients business as our own business.
3)Good Quality:We have strict QC quality control system .Good reputation in the market.
4)Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).



Welocme  to  Bindtec &Leado !



Our factory will arrange the car to  pick you up in the airport or hotel .
